CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity

CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity
Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: PRINTYOUNG
Chứng nhận: CE
Số mô hình: CHM-1400, CHM-1700
Số lượng đặt hàng tối thiểu: 1 bộ
Giá bán: USD 65000 ~ 75000 Set
chi tiết đóng gói: Áp dụng bao bì chống ẩm và chống sốc, phù hợp cho việc vận chuyển đường dài và nhiều loại điều kiện
Thời gian giao hàng: 60 ngày làm việc
Điều khoản thanh toán: L/C, T/T
Khả năng cung cấp: 10 bộ mỗi tháng
Liên hệ với bây giờ
Người mẫu: CHM-1400, CHM-1700 Phạm vi giấy: 50 ~ 500 g/m2
Đường kính giấy lớn nhất: 1650mm (65〃) Tờ lớn nhất: 1400mm, 1700mm
Tổng công suất: 23kw, 25kw Chiều dài cắt: 450 ~ 1450 mm
Cắt bỏ độ chính xác: ± 0,5 mm tốc độ cắt cao: 300 vết cắt/phút
Tốc độ cắt cao nhất: 300 m/phút Cân nặng: 9000kg, 10000kg

CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 0

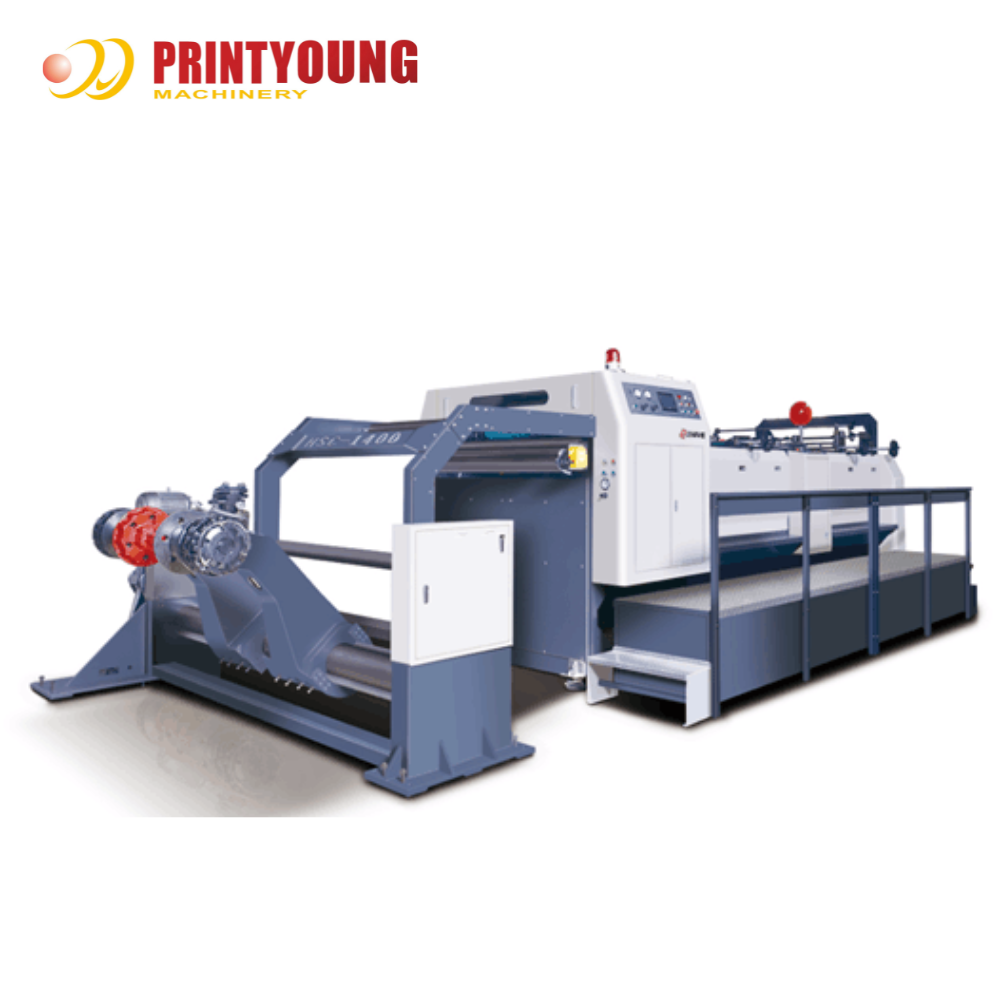

CHM-1400 1700 Automatic Rotary Paper Sheeting Machine
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 1
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 2
Features
This machine is specialist for horizontal and vertical cutting paper rolling materials to A4, A3,A2 size etc. it can be with 1 roll,or 2rolls,or 4 rolls etc.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 3
Technical Parameters
Model
CHM-1400
 CHM-1700
Model of Cutting Paper
the up knife cut reciprocally and the down knife is fixed
The Paper Scope
50 ~ 500 g/m²
The Largest Diameter of Paper
1650mm (65〃)
The Biggest Sheet
1400mm (55〃)
 1700 mm
The Total Power
23 kw
 25 kw
The Length of the Cut
450 ~ 1450 mm
Cut Off the Accuracy
± 0.5 mm
High Cutting Speed
300 cuts/min
The Highest Cutting Speed
300 m/min
Air Pressure Source Demand
0.8 MPa
Design of the Power Supply
AC 380V/220V 50Hz
Weight
9000 kgs
 9000 kgs

Production
actual output paper-based materials,paper, gram,cutting length,
number of package paper, operator technology and operating conditions
Configuration

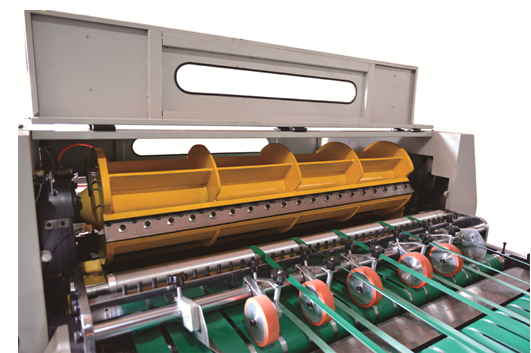

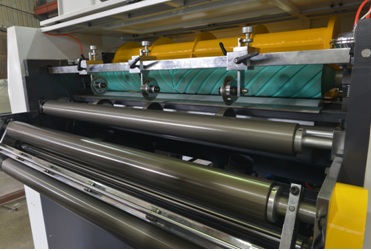

1.In the above knife in rotary,the fixed knife set below:
Above knife:Use the british-style cropped way to effectively reduce the cutting load and noise,and prolong the life of the cutting.The knife roller body with stainless steel precision machining after welding,and the dynamic balance adjustment,effectively reduce the vibration and noise generated when high-speed operation.
The following knife:knife block made ​​of cast iron,then by precision machining,good stability.
Back to the cutter:special alloy precision knife processed into,long life,easy to adjust the blade.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 4
2.Paper clip mode:controlled by hydraulic clamped paper arm to open and close and move back and forth and lift. can carried steady and rapid rise and fall move,more easy and convenient to operate.
3.Active roll:there are roller surface expansion grain design,use gasbag control roller the body pressurized jammed paper.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 5
Adjusting Diagonal System
The upper and lower blade installation adopt a certain backing and the adjustment screw control,ensures easy installation and adjustment knife.In the left tool post,the automatic control system adopt the international first rate AC servo motor and driver from Germany,AC transducer from Germany,and all important units adopt famous imports with good quality.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 6
Electrostatic Eliminating Part
Type:the equipment has static elimination bars to avoid the static electricity of the paper.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 7CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 8

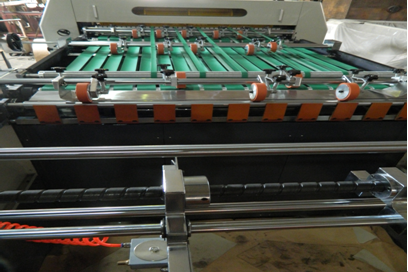

Transmission Parts

1.It can keep good stabilization along with high cutting speed.
2.The first conveyor section:speed is fast ,quickly separated Cut off the paper.
3.The second conveyor section:slow speed, paper is to be tiles stacked like send out.
4.The paper conveying section:avoid paper offsets.

Prevent Curling

Can effectively remove curl the paper roll. Make the paper roll more smooth,more conducive to the stability of the paper roll tension.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 9CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 10
Automatic Paper Part
1.Type:unwinding adopt hydraulic pressure loading,the paper stack to a certain height,automatic lowering.
2.Paper effective height stacking maximum 1300mm (51").
3.Review systems:
1)Frontage electrodynamic type paper collect.
2)Both sides pneumatic type paper collect.
3)Tailgate is adjustable baffle.
Automatic Label Insert System
Using can accurately count label insert system,operators only need to in the touch screen input quantity of paper after,the quantity of paper can do the marking as the setting already.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 11
Electric Control Part
Using PLC system,making the operation more simple,automated,cutting length,quantity and the total number of other finished products can be entered directly on the touch screen in the actual cutting length and cutting the number of timely display.
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 12
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 13
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 14
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 15
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 16
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 17
CHM High Productivity Automatic Rotary Paper Sheeting Machine with Motor & Engine 300m/min Production Capacity 18
